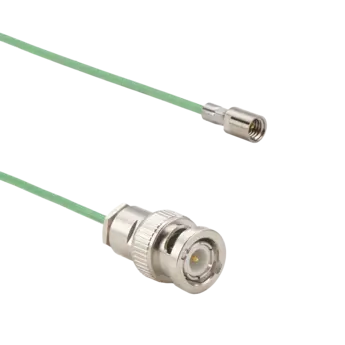

Connecting cables for piezoelectric sensors, KIAG 10-32 pos. int. - BNC pos. / 1939A
Green, single-wire, high insulation, PFA based cables (ø2 mm) for sensors with KIAG 10-32 neg. int. connector
- Number of conductors: 1
- Length: 1 m / 2 m / 3 m / custom (0.1 to 20 m)
- Temperature range: –55 to +200°C
- Sensor connection: KIAG 10-32 pos. int.
- Amplifier connector: BNC pos.
Charge mode, high impedance piezoelectric measurement demands highly insulated coaxial cables and connectors to ensure an insulation resistance greater than 1013 Ω throughout the measuring chain. Only low noise coaxial cables that produce very little triboelectricity during movement may be used. The connectors must be robust, sealed and resistant to dirt.
Connecting cable for piezoelectric sensors, KIAG 10-32 pos. int. - BNC pos., length 0.1 to 20 m
