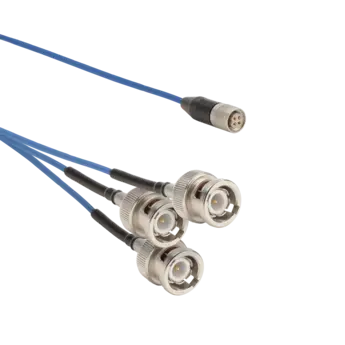

Separation cable for voltage output sensors, 1/4-28 neg. to 3 x BNC pos., silicone, low outgassing, custom length / 1734ALK04SP

Kistler offers flexible accelerometer cables for triaxial accelerators applied in e-motor NVH testing.
1734ALK04SP
18036546
  • Cable material: Silicone (main)
  • IP protection (sensor / amplifier): IP50 / IP40
  • Cable length: 0.1 ... 20 m
  • Temperature range: -55 ... 200°C
Upon request
On request
Measuring ranges
Temperature measuring range [°C]
-55 … 200 °C
Certificates and Standards
Degree of protection EN 60529 (sensor)
IP50
Degree of protection EN 60529 (amplifier)
IP40
Cable properties
Connection angle (sensor)
Straight
Low outgassing
Yes
Cryogenic applications [-195°C]
Yes
Connection option (sensor)
Screwed
Configurable cable length
0.1 … 20 m
Interfaces
Connection type (sensor)
1/4-28 4-pole neg.
Connection type (amplifier)
BNC pos., BNC pos., BNC pos.
Dimensions and materials
Material
Silicone
Cable diameter
2.5 mm
Cable color
Blue
Cable for voltage output sensors (e.g. IEPE triaxial accelerometers).
