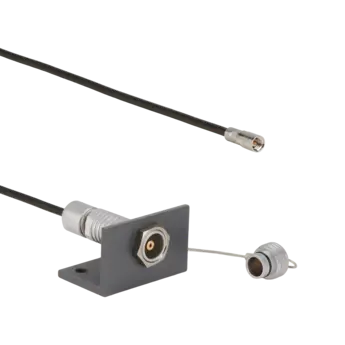

Connection cable for piezoelectric sensors, KIAG 10-32 pos. int to Fischer 103 neg., 1 m / 1979A1

Connection cable for piezoelectric sensors, KIAG 10-32 pos. int to Fischer 103 neg., 1 m
1979A1
18000960
  • Cable material: FPM
  • IP protection: IP67 / IP68
  • Cable diameter: 3.2 mm
  • Cable length: 1 m
Upon request
On request
Log in to myKistler to see prices
Mechanical properties
Bending radius (static)
24 mm
Bending radius (dynamic)
48 mm
Electrical properties
Insulation resistance
>1 x E+14 Ω @RT
Impedance
50 Ω
Certificates and Standards
Degree of protection EN 60529 (sensor)
IP67
Degree of protection EN 60529 (amplifier)
IP68
Operation and installation
Operating temperature range
-55 … 200 °C
Cable properties
Cable insulator
PTFE
Connection angle (sensor)
Straight
Connection option (sensor)
Weldable
Protection welded (sensor)
IP67
Sensor type
Piezoelectric
Special features
Low noise, High insulation
Cable length
1 m
Interfaces
Connection type (sensor)
KIAG 10-32 pos. int.
Connection type (amplifier)
Fischer 103 KE neg.
Dimensions and materials
Material
FPM
Cable diameter
3.2 mm
Cable color
Black
Weight
80 g
Coaxial cables for force, torque and strain sensors (e.g. for sensors with KIAG 10-32 int. connector).
