Home/Products/Connectivity and accessories/Cables/Separation cables for voltage output sensors, 1/4-28 neg. to 3 x BNC pos., FEP/1756C3K04

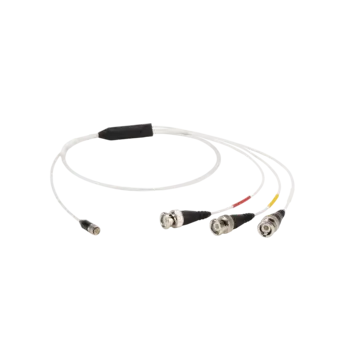

Separation cable for voltage output sensors, 1/4-28 neg. to 3 x BNC pos., FEP, 3 m / 1756C3K04

Separation cable for voltage output sensors, 1/4-28 neg. to 3 x BNC pos., FEP, 3 m
1756C3K04
18029903
  • Cable material: FEP (main)
  • IP protection (sensor / amplifier): IP50 / IP40
  • Cable length: 3 m
  • Temperature range: -196 ... 200°C
Upon request
On request
Log in to myKistler to see prices
Certificates and Standards
Degree of protection EN 60529 (sensor)
IP50
Degree of protection EN 60529 (amplifier)
IP40
Operation and installation
Operating temperature range
-196 … 200 °C
Cable properties
Cable insulator
FEP (main)
Connection angle (sensor)
Straight
Connection option (sensor)
Screwed
Sensor type
IEPE
Special features
Cryogenic applications [-195°C]
Cable length
3 m
Configurable cable length
1 … 20 m
Interfaces
Connection type (sensor)
1/4-28 4-pole neg.
Connection type (amplifier)
BNC pos., BNC pos., BNC pos.
Dimensions and materials
Material
FEP (main)
Cable diameter
2.7 mm
Cable color
Transparent
Weight
90 g
Cable for voltage output sensors (e.g. IEPE triaxial accelerometers).
