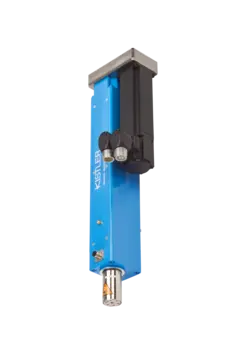

Electromechanical NC joining module NCFT, servo press, 0,5 kN/0,10 kN, 250 mm stroke, 400 mm/s speed, angular version / 2157B3T250

Electromechanical NC joining module NCFT, servo press, 0,5 kN/0,10 kN, 250 mm stroke, 400 mm/s speed, angular version
2157B3T250
18044407
  • NC joining module NCFT, servo press for processes with low forces
  • Measuring range: 0,5 kN/0,10 kN
  • 250 mm stroke
  • Speed 400 mm/s, angular version
Upon request
On request
Measuring ranges
Required force
0.5 kN
Product type
Joining module type
NCFT
Type of force sensor
Piezoelectric
Mechanical properties
Stroke
250 mm
Motor brake
With a holding brake
Drive version
Right angled drive
Dynamical properties
Maximum speed [mm/s]
400 mm/s
Operation and installation
Applications
3C electronics manufacturing
